Kamille Comfort Wheelchair

Comfort Wheelchair ensuring unique sensory-stimulating body delimitation.

The individual fit and extreme comfort help to increase activity level, function level and quality of life.


Max. user weight 140 kg.

Description

Comfort Wheelchair ensuring unique sensory-stimulating body delimitation

Kamille Comfort Wheelchair provides exceptional support because its design is so flexible that it can support contractures in both UE and LE without special adaptation. The potential to adapt optimally to the individual helps to increase activity level, function level and quality of life.

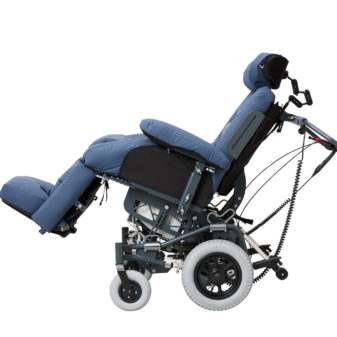

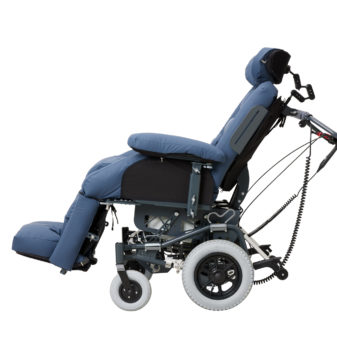

The wheelchair can be tilted up to 45°, which aids in transfers and other manoeuvres. The back can be angled up to 40°. The wheelchair can also be adapted to the user’s hip, knee and ankle joints.

Electrically adjustable back and electric tilt for the seat and back

Kamille Comfort Wheelchair comes with an electrically adjustable back and electric tilt for the seat and back as standard. The various electrical functions are continuously variable, which means the user will not experience any annoying lurches.

The electric function also allows adjustment of the hip angle and the angling of the seat back.

Electric tilt and back adjustment ensures better working conditions for the helper, who can avoid using their own body weight when handling the wheelchair.

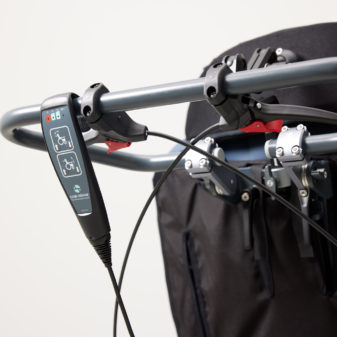

The electric functions are activated with a joystick that can be operated by either the user or the helper.

See our range of comfort wheelchaír for patients with obesity or dementia.

Find Kamille Comfort Wheelchair at the Danish AssistData.

Specifications

Max. user weight140 kg
Class APrimarily for indoor use
Basic UDI5740000100024N8
Expected service life 7 years
Crash testetNo
Seat depth400-560 mm
Back angle96° - 131°, continuously variable
Seat angle0° - 45°, continuously variable
Backrest height500-525 mm
Seat width340-520 mm
Total width640-830 mm
Max. weight of wheelchair47 kg
Max. weight of heaviest component of wheelchair4 kg
Max. slope uphill
Solid drive wheels12½", PU
FrameSteel and aluminium
Cushion filling (back, foot)Granulated latex and polystyrene balls
Cushion filling (seat)Granulated latex and foam base
Cushion paddingStretchable rubber padding
Push bar, adjustableYes
Turning radius (pivot)Yes
General requirements and test methodsISO/EN 12182, 12183
Turning radius (pivot)1100-1300 mm
Water resistant IPX6
Push bar, footrest tubing, foot and calf plateSteel
Wheel forksAluminium
BatteryLi-Ion 24V 2.6 Ah
Two actuatorsLINAK LA23
Control boxLINAK
Remote controlLINAK HB30
Electric wheelchair, including componentsDS/EN 12183: 2014, i henhold til ISO 7176
Cleaning and maintenanceStretch covers (recommended additional purchase) for the Kamille Comfort Wheelchair can be washed at 60°C and tumble-dried.

The cushions can be wiped down with a damp cloth and mild soapy water.

All cushions can be changed when transferring to a new user.

The Kamille Comfort Wheelchair can be used indoors and outdoors.

If the frame becomes dirty, it can be wiped down with a damp cloth and mild soapy water.

It is recommended that the Kamille Comfort Wheelchair should be wiped down and vacuumed at least once a week and that the wheels should be checked for dirt.

Disinfection
The frame, cushions and push bar can also be disinfected with e.g. a Wet Wipe 70% or a chlorine product of 1,000-1,200 ppm.

Ordering

ModelSeat width cmSeat depth cmMax width cmMax backrest height with back raiser cmProduct no.
Manual wheelchair with remote control34-40 40-4469,557,5 + 8 cm (additional)0350-142-000
Manual wheelchair with remote control34-40 46-5069,557,5 + 8 cm (additional)03050 148-000
Manual wheelchair with remote control40-46 40-4469,557,5 + 8 cm (additional)0350-242-000
Manual wheelchair with remote control40-4646-5069,557,5 + 8 cm (additional)0350-248-000
Manual wheelchair with remote control40-4652-5669,557,5 + 8 cm (additional)0350-254-000
Manual wheelchair with remote control46-5246-5069,557,5 + 8 cm (additional)0350-348-000
Manual wheelchair with remote control46-5252-5669,557,5 + 8 cm (additional)0350-354-000
Power wheelchair with joystick34-4040-4457,5 + 8 cm (additional)0351-142-000
Power wheelchair with joystick34-4046-5057,5 + 8 cm (additional)0351-148-000
Power wheelchair with joystick40-4640-4457,5 + 8 cm (additional)0351-242-000
Power wheelchair with joystick40-4646-5057,5 + 8 cm (additional)0351-248-000
Power wheelchair with joystick40-4652-5657,5 + 8 cm (additional)0351-254-000
Power wheelchair with joystick46-5246-5057,5 + 8 cm (additional)0351-348-000
Power wheelchair with joystick46-5252-5657,5 + 8 cm (additional)0351-354-000

Accessories

AccessoriesProduct no.
Joints for mounting of detachable swing-away legrest, R0350-999-282
Joints for mounting of detachable swing-away legrest, L0350-999-283
Headrest, S0350-999-040
Headrest, M0350-999-041
Headrest, L0350-999-042
Weighted flexi arms, R0350-999-430
Weighted flexi arms, L0350-999-430
Foot cushion combined, S0350-999-455
Foot cushion combined, M0350-999-456
Foot cushion combined, L0350-999-457
Calf cushion combined, S0350-999-445
Calf cushion combined, M0350-999-446
Calf cushion combined, L0350-999-447

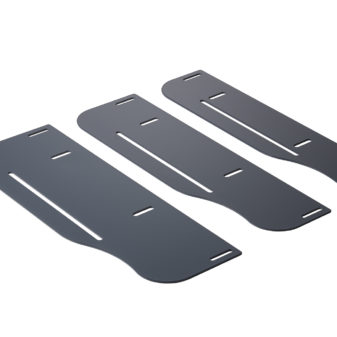

Back raiser plate0350-999-218
Back raiser middle base0350-999-220
Back raiser side, S0350-999-225
Back raiser side, M0350-999-226
Back raiser side, L0350-999-227
Back raiser cushion0350-999-495
Anatomic SITT Anti-rotation Belt, S0350-999-600
Anatomic SITT Anti-rotation Belt, M0350-999-605
Anatomic SITT Support, Sternum Support Soft Pro, M0350-999-608
Anatomic SITT Soft Pro, Sternum Support, M, custom-made + 6 cm 0350-999-610
Anatomic SITT Support, Sternum Support Soft Pro, L0350-999-612
Anatomic SITT Support, Thorax Harness Pro, S (width 25 cm)0350-999-615
Anatomic SITT Support, Thorax Harness Pro, M (width 33 cm)0350-999-617
Anatomic SITT Support, Thorax Harness Pro, L (width 40 cm)0350-999-619
Body support, R0350-999-485
Body support, L0350-999-487
Weighted neck cushion0350-999-475
Weighted calf cushion blanket0350-999-477
Knee cushion0350-999-490
TableContact Cobi Rehab
Complete cushion set, Kamille Comfort Wheelchair, S0350-999-402
Complete cushion set, Kamille Comfort Wheelchair, M0350-999-404
Complete cushion set, Kamille Comfort Wheelchair, L0350-999-406
Back cushion 1, S0350-999-410
Back cushion 1, M0350-999-411
Back cushion 1, L0350-999-412
Back cushion 2, S0350-999-415
Back cushion 2, M0350-999-416
Back cushion 2, L0350-999-417
Back cushion 3, S0350-999-420
Back cushion 3, M0350-999-421
Back cushion 3, L0350-999-422
Back side cushion, R 0350-999-425
Back side cushion, L0350-999-427
Coat guard cushion, R0350-999-435
Coat guard cushion, L0350-999-437
Calf cushion split, R0350-999-440
Calf cushion split, L0350-999-442
Foot cushion split, R0350-999-450
Foot cushion split, L0350-999-452
Footrest tube cushion, R0350-999-460
Footrest tube cushion, L0350-999-462
Seat cushion, S0350-999-465
Seat cushion, M0350-999-466
Seat cushion, L0350-999-467
Wedge seat cushion0350-999-492
Headrest cushion, S0350-999-470
Headrest cushion, M0350-999-471
Headrest cushion, L0350-999-472
Armrest cushion, R0350-999-480
Armrest cushion, L0350-999-482
Headrest stretch cover, SContact Cobi Rehab
Headrest stretch cover, MContact Cobi Rehab
Headrest stretch cover, LContact Cobi Rehab
Back stretch cover, MContact Cobi Rehab
Back stretch cover, LContact Cobi Rehab
Seat/legrest combined stretch cover, SContact Cobi Rehab
Seat/legrest combined stretch cover, SContact Cobi Rehab
Seat/legrest combined stretch cover, SContact Cobi Rehab
Seat/legrest split stretch cover, SContact Cobi Rehab
Armrest stretch coverContact Cobi Rehab
Flexi arm stretch coverContact Cobi Rehab

Download

Product sheet (PDF)
Presentation (PDF)
User manual (PDF)
Quick guide (PDF)
