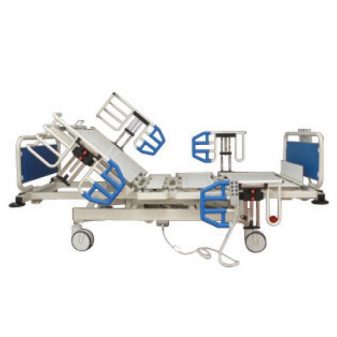

XXL-Rehab 500 bariatric hospital bed

Strongly engineered and functionally designed exclusively for bariatric users!

The XXL-Rehab 500 bariatric hospital bed is a modern nursing bed suitable for bariatric users who weigh up to 450 kg. This bed is highly appropriate for recycling due to its adjustability.

Ideal use for…

– Bariatric users up to 450 kg.
– Bariatric users in hospitals.
– Bariatric users or other users who need an extra wide bed.
– Home care.
– Rehabilitation centers.

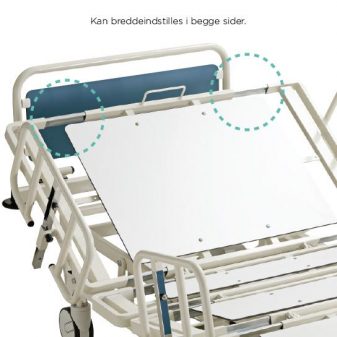

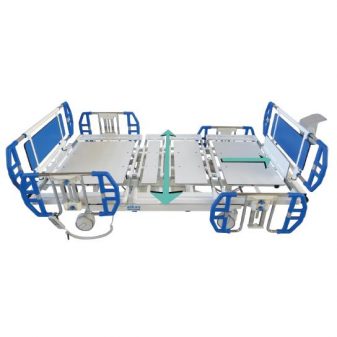

The bed accommodates both the needs of the user and care-giver. The bed is manually adjustable both in width (90 /100 or 120 cm) and in length (200 or 220 cm), making it easy to use for multiple users with different needs, both in hospitals, in home care and in rehabilitation centers.

A stable frame and a sturdy construction ensure that the bed provides great stability for the user, also in connection with transfer. The bed also has a central braking system and directional control of the wheels. Light bed rails are available for the bed. They are removable without tools. The lying surface of the bed is divided into four with up / down feature for both the headboard and foot end.

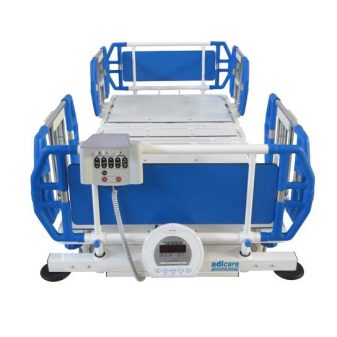

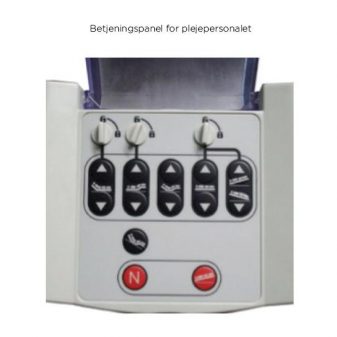

The XXL-Rehab 500 hospital bed has separate controls for the caregiver, including Trendelenburg and anti-Trendelenburg. Operation is easy to use and the caregiver can for example adjust the bed by standing at the foot end. The caregiver also has the option to lock individual power functions; this can help prevent misalignments of the user in the bed.

The bed has a light and elegant design with rounded corners, making it very easy to clean.

– Bed rails are removable without tools
– Many adjustments available for both user and caregiver
– Very easy to clean


Maximum weight capacity is450 kg + 50 kg equipment
Total length231-251 cm
Total width100-128 cm
Mattress size length200 / 220 cm
Mattress size width90 / 100 / 120 cm
Manually adjustable in width90 / 100 / 120 cm
Manually adjustable in length200 / 220 cm
Lying surface height39-82 cm
Minimum clear distance from the floor15 cm
Weight175 kg
Separate control for caregiverE.g. Trendelenburg and Anti-Trendelenburg position
Direction control on the wheelsYes
Central brakeYes

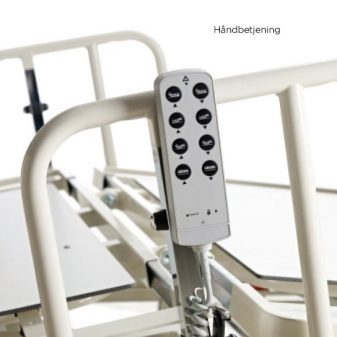

Magnetic lock on the user hand controlYes
Lock of individual electric functionsYes
Removable lifting poleYes
Removable foot gableYes
Removable headboardYes
Ingress for water66 IP
Wheel diameter145 mm
ISO - classificationISO 18 12 10 - 30


ModelOrder No
XXL-Rehab 500 bariatric hospital bed2314-120-220


AccessoriesOrder No
Bed rails2314-999-008
Lifting pole2314-999-010
IV pole2314-999-012
