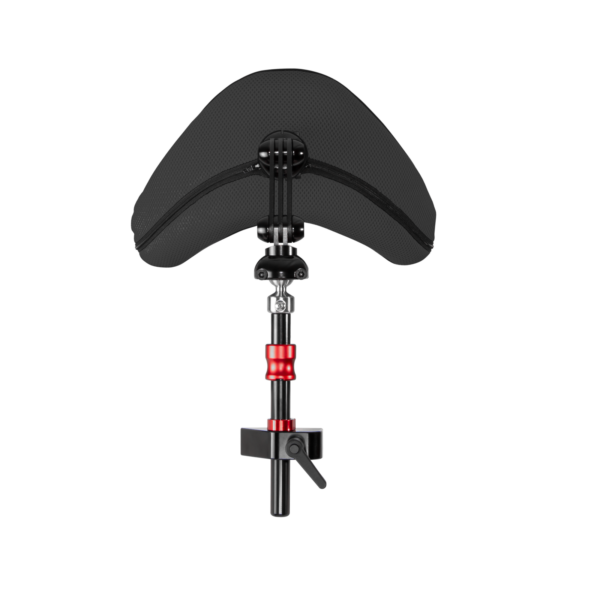

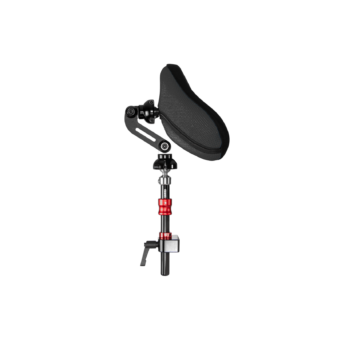

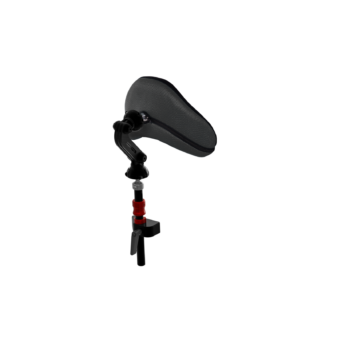

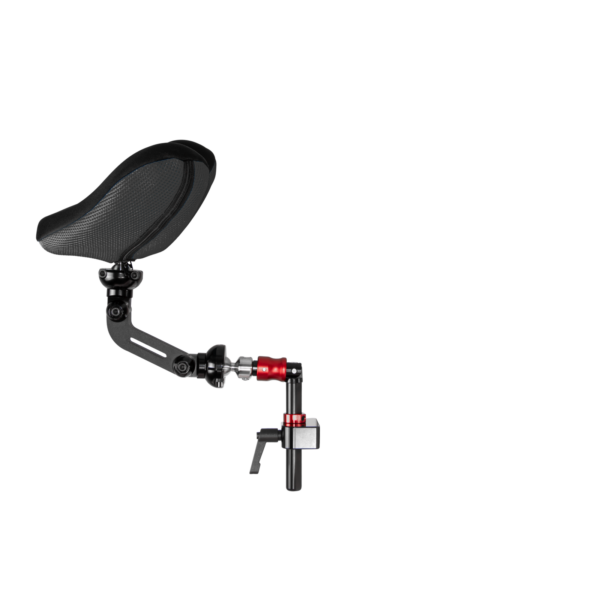

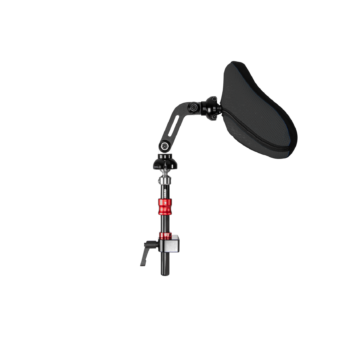

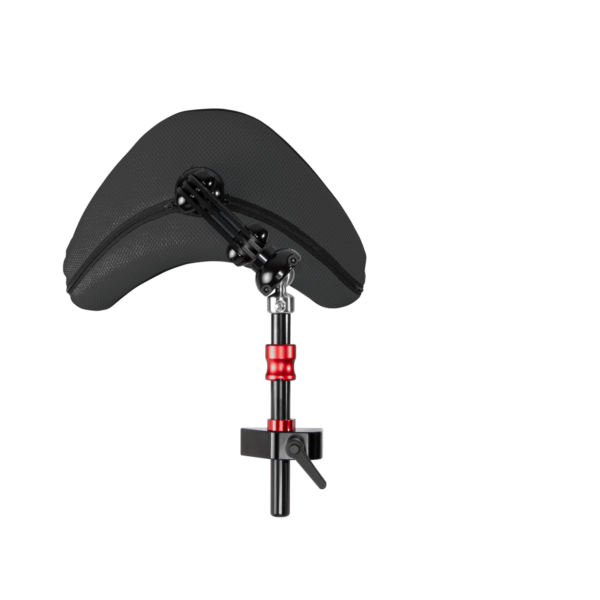

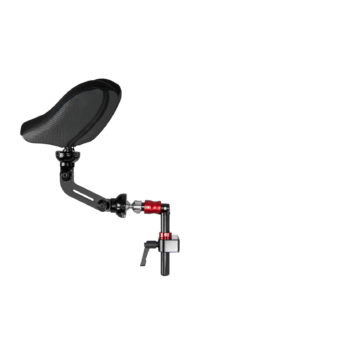

Spex Stylo Head Support

Adjustable head support for wheelchairs, developed for precise positioning of the head and neck. Spex Stylo combines high stability with extensive adjustment options, allowing the support to be individually adapted to both simple and complex needs.
The flexible design with ball joints and adjustable links makes it possible to position the head support exactly where the user requires support and pressure relief.

Used for

• Stable support of the head and neck in a wheelchair
• Users with reduced head control
• Asymmetrical seating positions or trunk rotation
• Positioning where the head support needs to be placed further away from the backrest

Category:

Description

Spex Stylo Head Support for Wheelchairs

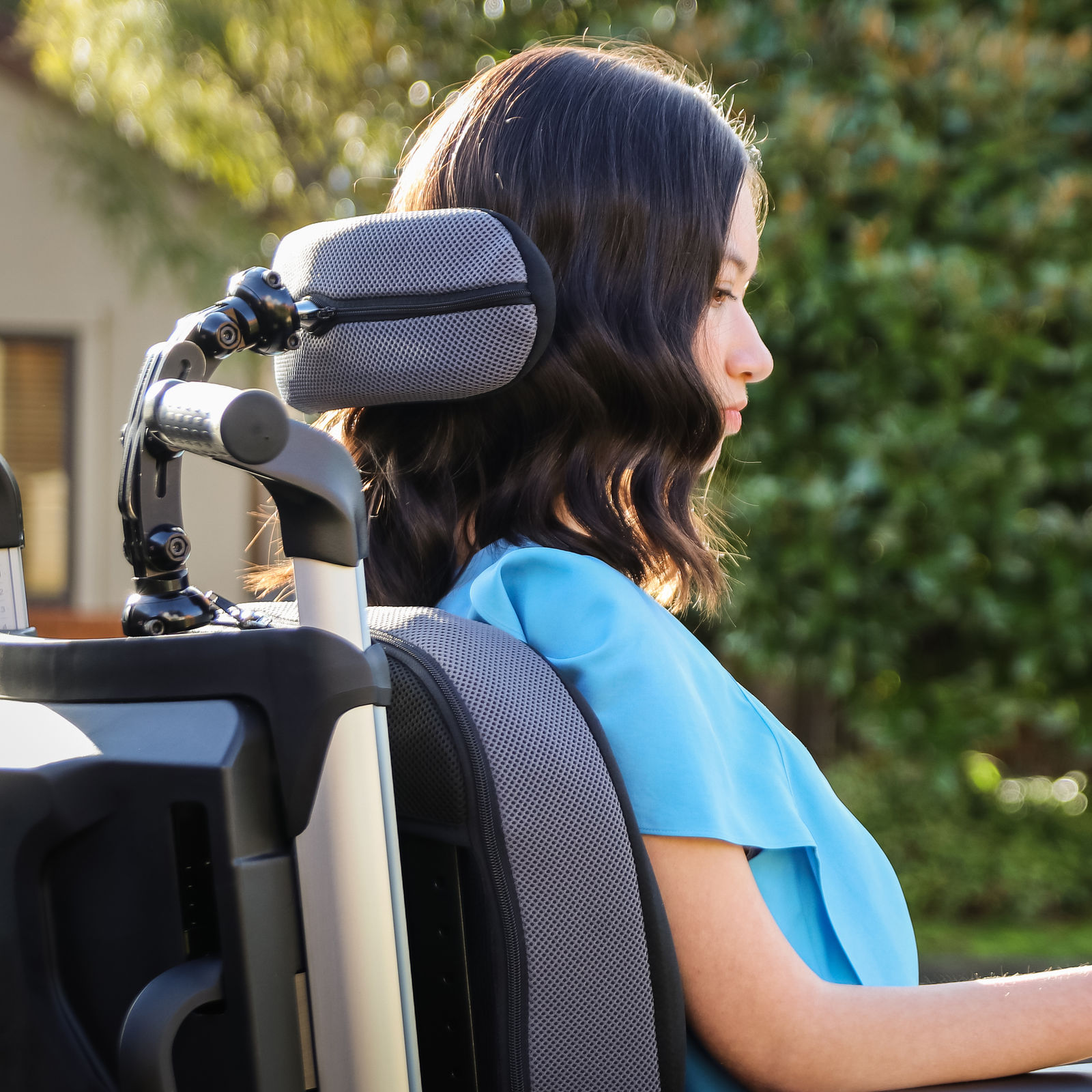

Spex Stylo is an advanced and flexible head support designed for precise positioning of the head and neck in the wheelchair. The system is developed to combine simple adjustment with a high degree of adaptability, enabling therapists to create optimal support for each individual user.

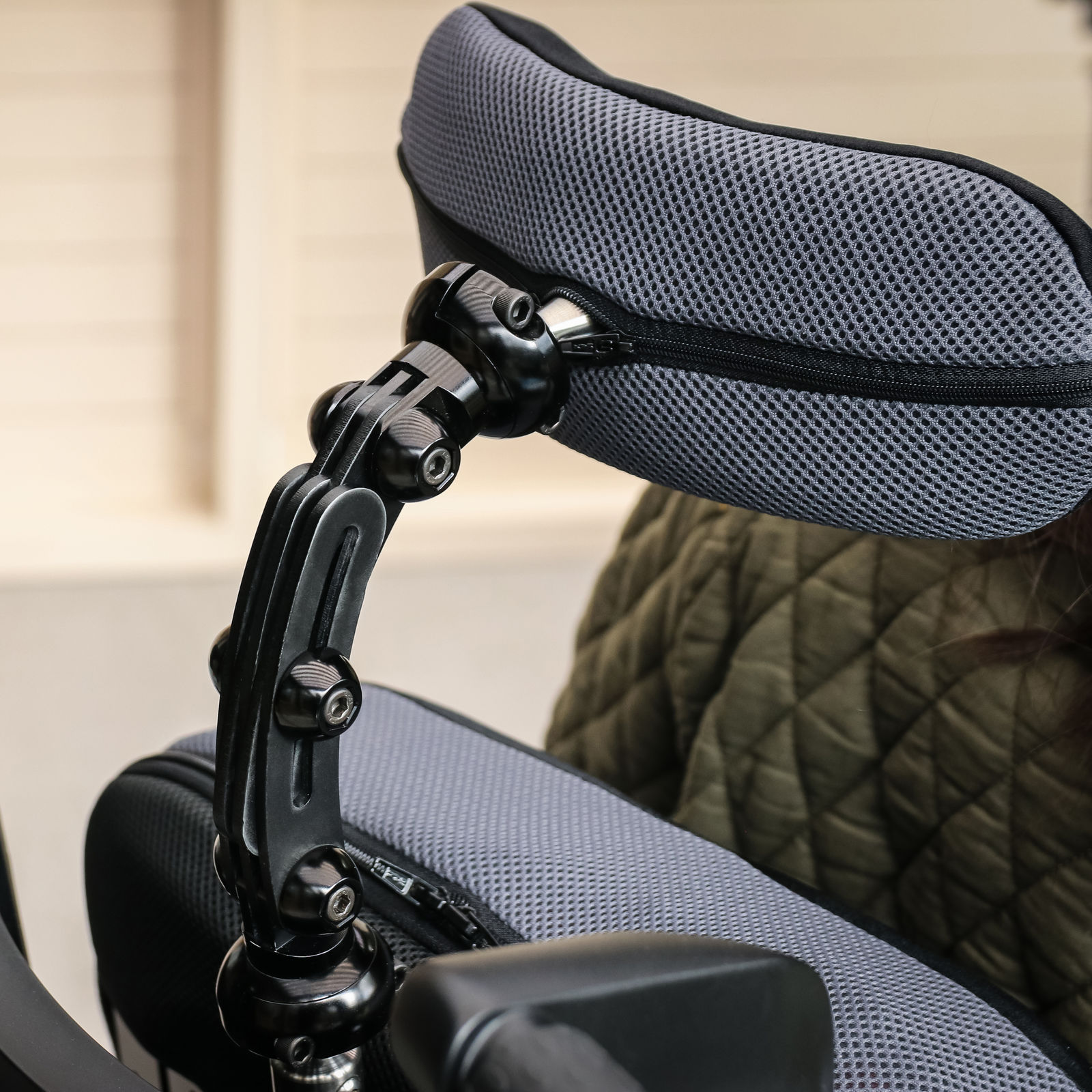

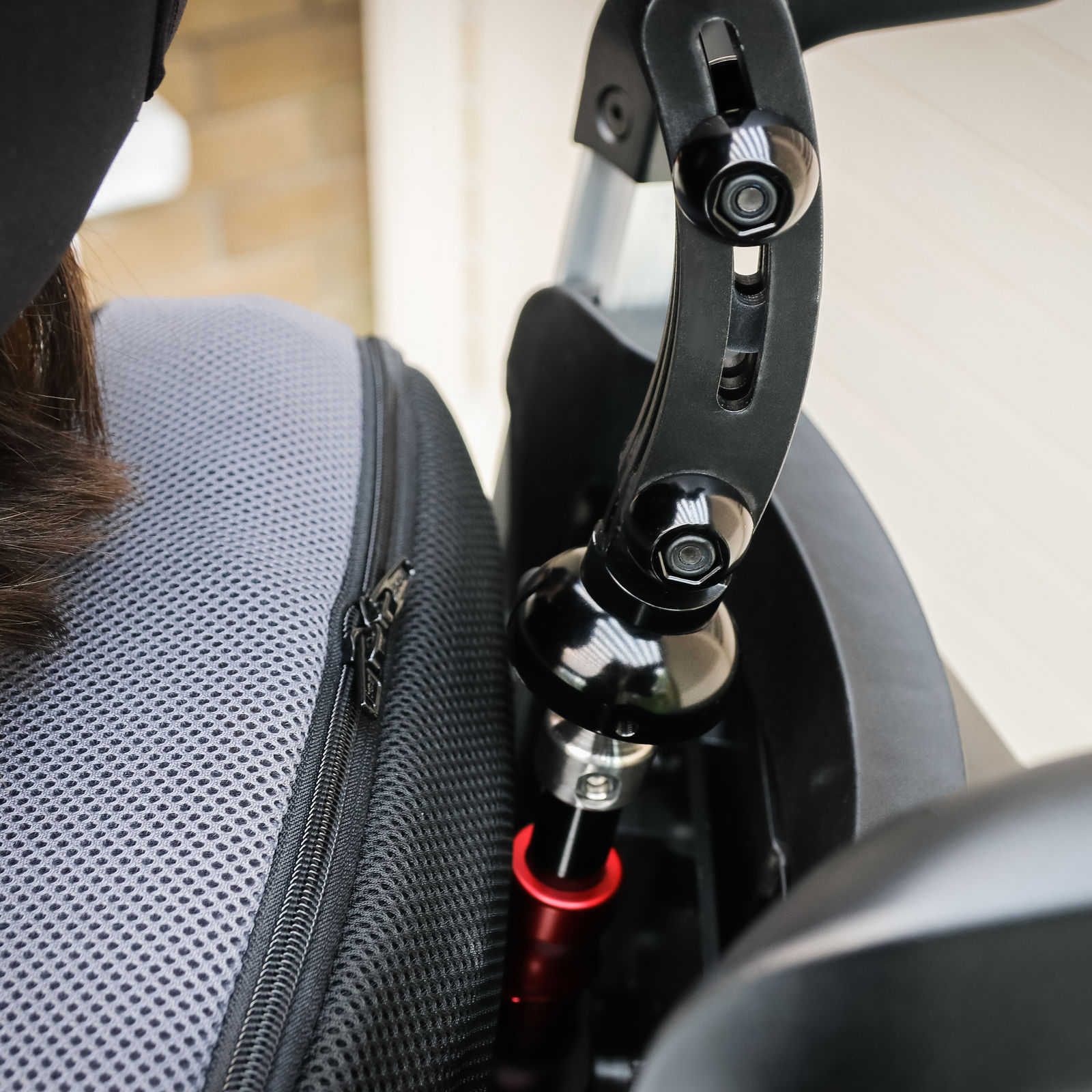

The head support uses an innovative system with ball joints and adjustable links, allowing the head pad to be positioned in a wide range of angles and orientations. This makes it possible to place the support exactly where the user needs stabilization and comfort.

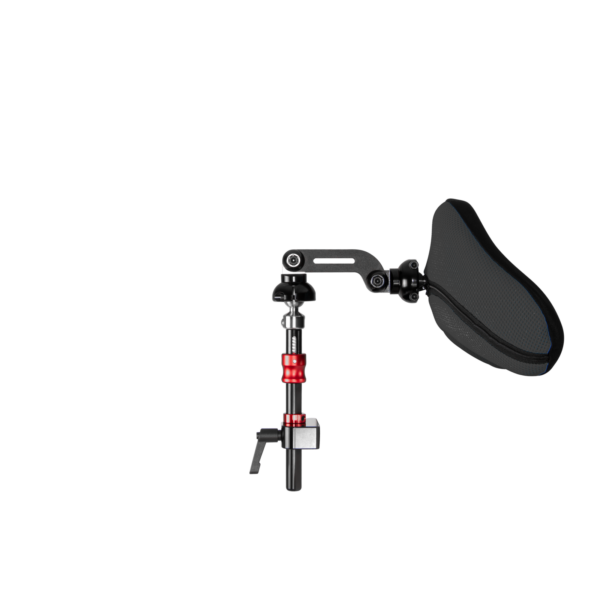

The Stylo system also offers an extensive adjustment range. On the Stylo 160 model, the head support can be adjusted up to 160 mm forward, making it suitable for users with increased thoracic or lumbar curvature, where the head support needs to be positioned further away from the backrest.

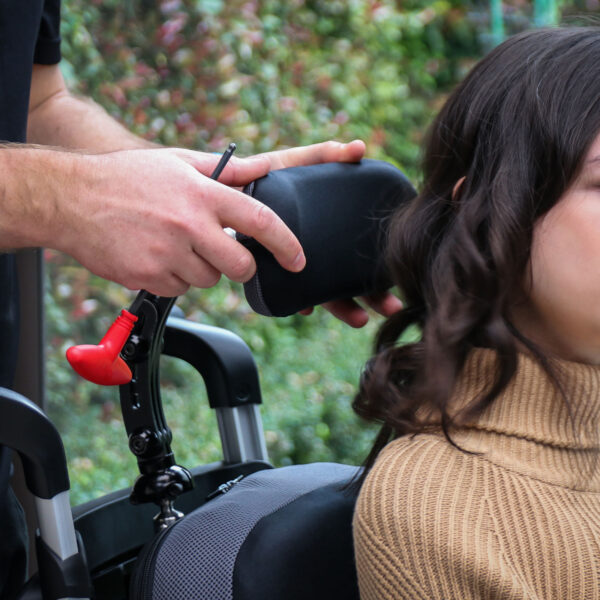

The construction is made from strong aluminium components, ensuring stable positioning without rotation or unwanted movement. At the same time, the entire system can be adjusted using just one tool, making adjustments quick and easy in clinical practice.

Spex Stylo is also available with a flip-back function, allowing easier transfers to and from the wheelchair.

Benefits of Spex Stylo

    • Highly flexible positioning of the head and neck

    • Ball joint system allows extensive adjustment freedom

    • Up to 270° angle adjustment

    • Forward adjustment up to 160 mm (Stylo 160) and 260 mm (Stylo 260)

    • Stable aluminium construction without rotation

    • Adjustable using a single tool

    • Optional flip-back function for easier transfers

Clinical applications

Spex Stylo is particularly suitable for users who:

    • Have reduced head control

    • Require precise head positioning

    • Experience rotation or lateral flexion of the upper body

    • Have increased thoracic or lumbar curvature and therefore require a head support positioned further away from the backrest

Specifikationer

Model160 / 260
Vægt915 g. / 830 g.
MaterialeCNC-bearbejdet aluminium
Kompatible hovedstøtterAlles Spex head supports
Frontal vinkeljustering360°
Vertikal justering (flip-back)80 mm.
Sagittal justeringOp til 180° + kugleled
Samlet justeringsområdeCa. 270°

Bestilling

ModelBredde cmHMI-nummerStandardvare
Spex Stylo nakkestøttearm - 1601274-1252-000Ja
Spex Stylo nakkestøttearm - 2601274-1282-000Ja
Spex Stylo nakkestøttearm - 260 swing away1274-2282-000Ja
Spex Contour nakkestøttepude - 2501275-0021-000Ja
Spex Comfort nakkestøttepude - 2501275-0031-000Ja
Spex Forlænget lateral nakkestøttepude1275-0044-000Ja
Spex Justerbar lateral nakkestøttepude - 2501275-0062-000Ja

Tilbehør

ModelVarenummerSkaffevare
Spex Heavy Duty kompalibilitetssæt1274-0000-HDKJa
Spex nakkestøttebeslag1274-4140-100Ja

Download

Brugervejledning
