Bariatric Wheelchair Minimaxx with Push Motor

Bariatric Wheelchair Minimaxx with Push Motor benefits caregivers by reducing wrist stress and the risk of sore shoulders.
Minimaxx also provides a practical and comfortable seating to support the requirements of the bariatric user.


Ideal use for

– Bariatric users weighing up to 200/325 kg in nursing homes, hospitals and private homes.

Description

Bariatric Wheelchair Minimaxx With Push Motor

Minimaxx With Push Motor is a strong power pack that assists the caregiver propelling the wheelchair with a bariatric user forward (or backwards) without effort. Use of the push motor function also benefits caregivers by reducing wrist stress and the risk of sore shoulders.

Push Motor is intended for mounting on a Minimaxx Wheelchair. A Minimaxx Wheelchair Push has a maximum user weight of 200 kg. Minimaxx Wheelchair Push can, however, be used up to 325 kg, but be aware that the engine power decreases when the user weighs more than 200 kg. The service life of the push motor is also shortened when the user weight exceeds 200 kg. Minimaxx Wheelchair Push is used outdoors and indoors in institutions, hospitals, care centers and in private homes.

Bariatric Folding Wheelchair Minimaxx Push Motor also provides a practical and comfortable seating to support the requirements of the bariatric user.

Operation

Push Motor is easy to operate. The control panel is located on the handle and shows the “Drive” and “Reverse” functions as well as speed control of 1-5 km/h. Even on sloping surfaces with inclines of up to 5%, it is easy to drive the Minimaxx Wheelchair Push “over the top”.

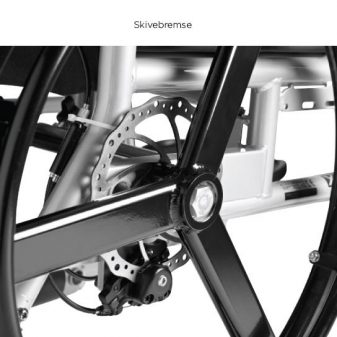

Downhill, the disc brake system provides a high degree of safety. If an immediate stop is needed, simply pull the lever. This causes the Minimaxx Wheelchair Push to stop immediately.

Construction

In the construction of Minimaxx Wheelchair a tube technology with light tubes has been used, which is also used on MTB bikes and road bikes (STW = Stiffness To Weight). Therefore, the Minimaxx Wheelchair Push weighs only about 9% of its weight capacity.

The castors on Minimaxx Wheelchair Push are located further forward than on standard wheelchairs. This ensures stability and prevents the wheelchair from tipping over.

Bariatric Folding Wheelchair Minimaxx is fitted with a viscoelastic foam cushion, providing a more comfortable seating. It also offers protection, fitted with a two-way stretch vapour permeable incontinence cover and non-slip base.

Bariatric Wheelchair Minimaxx With Push Motor can easily be transported thanks to its rigid folding mechanism, which reduces the size of the wheelchair for easier storage and transportation. It also has  puncture-proof wheels and parking brakes.

Armrest

Minimaxx Wheelchair Push is designed with extra long armrests, which makes it easy for the user to get in and out of the wheelchair. The seat height is low, which ensures the user easy access to the wheelchair.

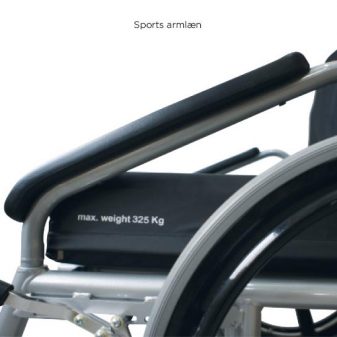

In addition to the detachable standard armrests, the Minimaxx Wheelchair Push can also be fitted with sports armrests.

Footrests

The footrests are designed to carry 100 kg each and can be adjusted in both height and width. The footrests can therefore be adapted to each user individually.

See our range of bariatric wheelchairs here. Find Wheelchair Minimaxx With Push Motor at the Danish Assist Data. Watch our Minimaxx Wheelchair presentation at YouTube

– Push motor is easy to operate
– Different armrests available

Specifications

Maximum weight 325 kg
(Minimaxx Wheelchair Push has a maximum user weight of 200 kg. Minimaxx Wheelchair Push can, however, be used up to 325 kg, but be aware that the engine power decreases when the user weighs more than 200 kg. The service life of the push motor is also shortened when the user weight exceeds 200 kg.)
Seat width56 / 61 / 66 / 71 cm
Total width excluding push handle 80 / 85 / 90 / 95 cm
Total height including push handle, lowest position110 cm
Total height103 cm
Total lenght without footrests70 cm
Seat depth46 cm
Seat height 43 cm
Backrest height51 cm
Weight Approx. 27 kg
Weight push motor 23 kg
Weight battery9 kg
Battery 12V 12AH x 2
Motor 24V 450W 4.5 amps
Tire size50 mm x 200 mm (Solid Tire) x 2
Charger capacity Off Board (1.8A)
Range per charge 4.5 km
Max. speed5 km/h
Gradient
ISO – classificationISO 12 23 12 - 02

Ordering

ModelSeat width cmSeat depth cmOrder No
Minimaxx With Push Motor, incl. disc brakes and footrests56460110-056-000
Minimaxx With Push Motor, incl. disc brakes and footrests61460110-061-000
Minimaxx With Push Motor, incl. disc brakes and footrests66460110-066-000
Minimaxx With Push Motor, incl. disc brakes and footrests71460110-071-000

Accessories

AccessoriesOrder No
Sport armrests, pair0100-999-006

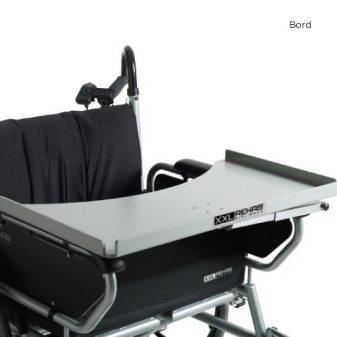

Table0100-999-001

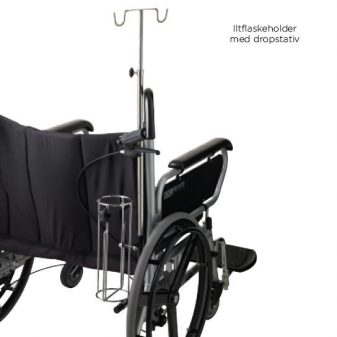

IV holder and 02 holder, diameter 10 cm0100-999-020
Footrest swing-away, right0100-999-010
Footrest swing-away, left0100-999-011

Download

Product info (PDF)
User manual (PDF)
